1-Year Parts Warranty on Both Units
Are you searching for Tire Equipment that offers the features that are necessary to service today’s larger, performance, stronger sidewall, and various fancy aluminum and steel wheels? Would you like to offer quality service, using current technology but with a moderate investment?
Have a look at Black Diamond Tire Equipment. We have developed a way to provide our customers with current technology, engineering, and the latest designs and features packaged at an affordable price. We have the tire equipment to suit your needs.

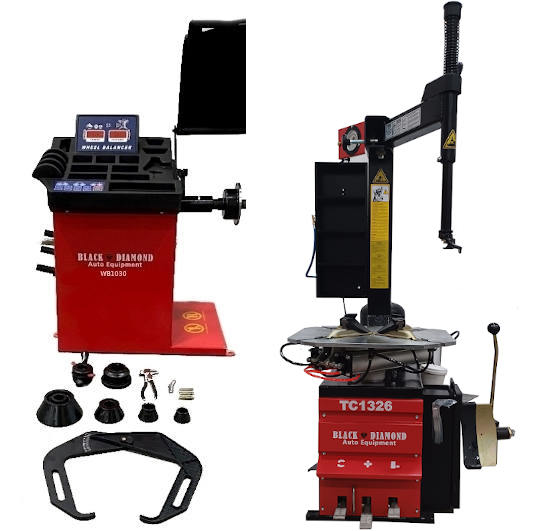

This Tire Equipment set includes a swing arm tire changer TC1326 and wheel balancer WB1030.
Tire Changer Features
Oversized air cylinder for increased power to assist arms
Powerful bead blast system (15 gallon rear tank)
EZ-read durable inflation/deflation gauge with lock on for valve stem
Plastic protectors for wheel clamps
Strong high-precision turntable, heat treated clamping jaws that ride on anti-friction guides
Double thick base cabinet, side storage shelves for tools and accessories
Heavy-duty foot pedal assembly
Air pressure regulator/water drain and oil lubricator with protective guard and metering device
Aluminum bead break cylinder anti-corrosion
3 position adjustable bead breaker shovel/2 position breaker arm for oversize wheels
3 position adjustable bead breaker rubber pad
Tire lever tool and plastic cover
10 ea. 2 pc. steel duckhead insert sets included
Tire Changer Specifications
|Max Wheel Width||14"|
|Max Wheel Diameter||41"|
|Working Air Pressure||110-145 psi|
|Bead Breaker Force||5500 lbs of bead breaking force|
|Shipping Weight/Net Weight||690lbs/620lbs|
Tire Changer Standard Accessories
Air Filter/ Regulator - Oiler
Bead Blast System
Plastic Claw Covers/Protectors
Wheel Balancer Features
Magnetic levitation system and self-propelled balancing. No Motor, No Belts
Self-calibration and self-diagnoses, see videos and manual
Includes quick nut, wheel hub, and cone set capable of balancing larger pickups such as Ford F350 series

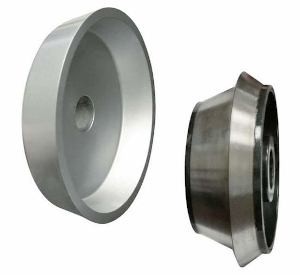

4 Cones sizes:
Cone #1. 1 3/4” - 2 5/8”
Cone #2 2 3/16 - 3 1/8”
Cone #3. 3 1/8” - 4 5/8”
Cone # 4 4 1/2 - 7 1/8”
3D measurement distance, diameter, width
Auto Entry: use measuring arm for distance and diameter, measure width manually
Auto Lock: Stop Key: Lock Wheel for mounting weights, or inspection, or stop in emergency
Auto Position: SPL key, "Smart Position Locator" wheel rotates to 12 o’clock, wheel locks, add required weight, cabinet light illuminates wheel, user-friendly for weight placement.
ALU-S mode: SPL key : wheel rotates to 4 o’clock and locks, add adhesive weights from easy angle, laser projects on wheel to pinpoint weight placement for both inside and outside plane
ALU key: toggle to select corresponding aluminum mode
Split Weights: Hide key: hide weights behind spokes when ALU -S program is activated
Dynamic and Static balancing modes. F key = Fn/Static
Fine key: Balance within 1/4oz. Or 5 grams
C key: Recalculate balance without spinning after distance, diameter, or width has been changed
User Data pre setting: 4 pre sets for wheel data can be stored
512 Angular Sensing Positions, 4 times more accurate than your average balancer
Cabinet floor plate, for extra stability
Cabinet light for dim areas
Wheel Balancer Specifications
Rim Diameter Range: 10-30"
Max Wheel Width: 16.3"
Max Wheel diameter: 42.5"
Distance to Spin Flange: 10"
Max Wheel Weight: 143.3 lbs
Balancing Precision: 1g
Balancing Speed: 150-220 RPM
Balancing Cycle Time: 7-10 seconds
Display: LED and Keypad
Angular Positions: 512
Ounce/Gram Selectable: Yes
Shipping Weight: 264.5 lbs
Packing Size: 38.1" x 30.3" x 45.2"
WB1030 Wheel Balancer Manual
