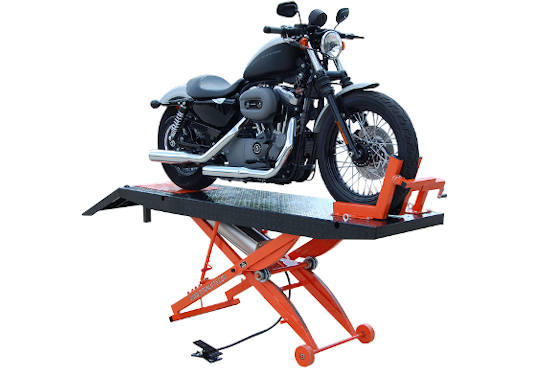

This heavy-duty diamond plated black and orange Titan SDML-1000D Motorcycle Lift is an air-powered lift table that has a 1,000 lb. lifting capacity. This lift also features an extra long working table so that even your longest motorcycle won't have a problem fitting on the 99" work space. With its comfortable 35" working height, the Titan 1000D Lift is a perfect addition to any shop or home garage.

Includes:

• Front Wheel Vise
• Multi-Positional Front Table Extension
• Standard Rear Wheel Drop Out
• Roller Plate Drop Out
• Detachable Ramp
• Extended Ramp
• Air Powered Lift Controls
• Two-Wheeled Dolly

**Does NOT include stabilizer bar**

Dimensions:

Length with Front Extension (position 1): 99"
Length with Front Extension (position 1) and Ramp: 120"
Length with Front Extension (position 2): 94 1/2"
Length with Front Extension (position 2) and Ramp: 114 1/2"
Length with Front Extension (position 3): 89 1/2"
Length with Front Extension (position 3) and Ramp: 109 1/2"

Specifications:

Lifting Capacity: 1,000 lb
Front Extension: 24.5" x 23.75"
Table Length: 87.5" - 99"
Table Width: 24"
Lowered Height: 8"
Rise Height: 33"
Power Type: Air Only
Power Spec: 90 - 110 PSI

Locking Heights:

Lock Position 1: 25.25"
Lock Position 2: 27.25"
Lock Position 3: 28.75"
Lock Position 4: 30.25"
Lock Position 5: 31.75"

Titan SDML-1000D Motorcycle Lift Manual
