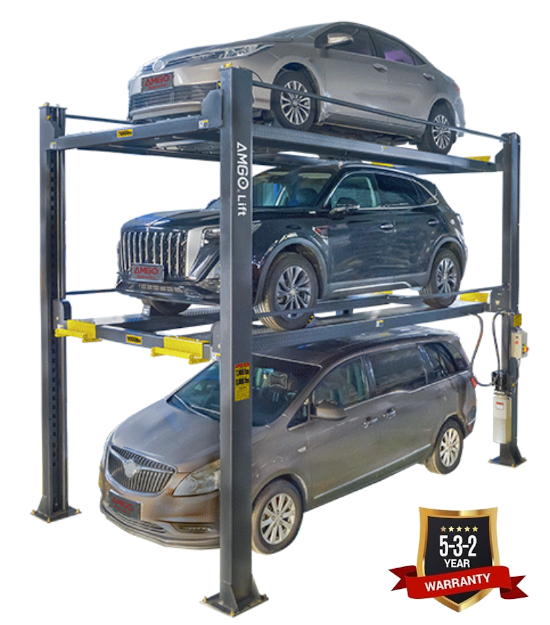

The revolutionary 4097x from AMGO redefines the unparalleled triple parking solution in one place. By eliminating bulky structures in favor of an embedded-platform design, it maximizes space without sacrificing strength. Featuring proprietary multi-functional ramps, a double-lock safety system, and intuitive fingertip controls, the 4097X delivers unmatched ease of use and parking convenience

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

● The patented design of 4097X features double safety locks for both lower and upper platforms;
● Capacity: 7,000lbs for upper platforms, 9,000lbs for lower platforms;
● Embedded platform design allows one set of drive-in ramps to serve both lower and upper platforms, minimum height just 7 1/16”;
● Safety control devices protect the vehicle from collision during lifting of the lower platforms, and prevent the upper platforms separating from the lower platforms when carrying the upper platforms down;
● Effortless fingertip push lock release operation;
● 220V/60HZ Single Phase power unit, ETL Certified;
● Proprietary drive-in ramps function as both tire stop and drive-on ramp, with quick assembly and disassembly.

 Click links below for more info:

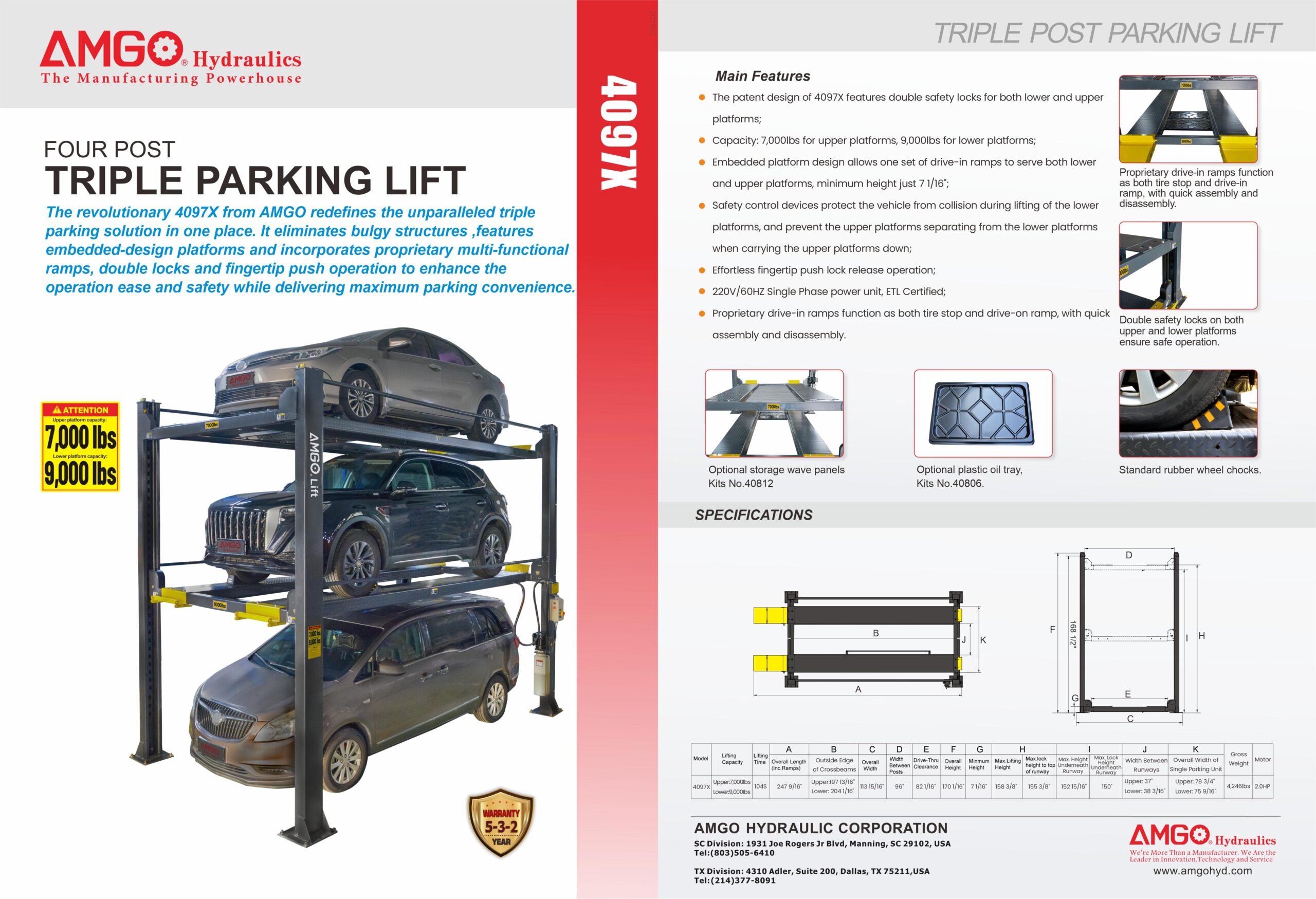

4097X 4 Post Triple Parking Lift Brochure

Lowering/Increasing Speed Adjustment on Your Lift

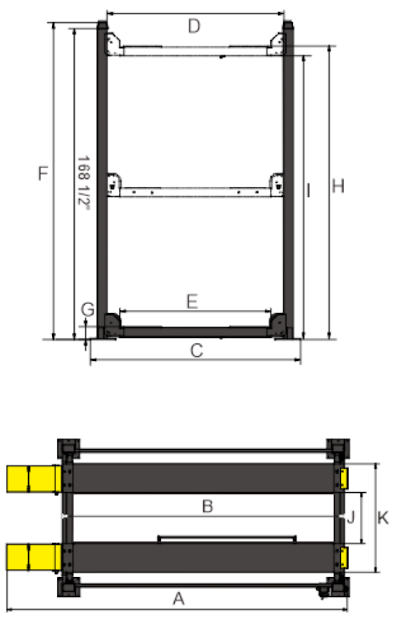

Specifications

Model     4097X
Lifting Capacity Upper:     7,000 lbs
Lifting Capacity Lower:     9,000 lbs
Lifting Time:     104 S

A：Overall Length (Inc. Ramps):     247 9/16″
B：Outside Edge of Crossbeams (Upper):     197 13/16″
B：Outside Edge of Crossbeams (Lower):     204 1/16″
C：Overall Width:     113 15/16″
D：Width Between Posts:     96″
E：Drive Through Clearance: 82 1/16″
F：Overall Height:     170 1/16″
G：Minimum Height:     7 1/16″
H：Max. Lifting Height:     158 3/8″
H：Max. Lock to Top of Runway:     155 3/8″
I：Max. Height Underneath Runway:     152 15/16″
I：Max. Lock Underneath Runway:     150″
J：Width Between Runways (Upper):     37"
J：Width Between Runways (Lower):     38 3/16"
K：Overall Width of Single Parking Unit (Upper):     78 3/4"
K：Overall Width of Single Parking Unit (Lower):     75 9/16"
Motor:     2.0HP
Gross Weight:     4,246 lbs
