1-Year Parts Warranty
Are you searching for Tire Equipment that offers the features that are necessary to service today’s larger, performance, stronger sidewall, and various fancy aluminum and steel wheels? Would you like to offer quality service, using current technology but with a moderate investment? Have a look at Black Diamond Tire Equipment. We have developed a way to provide our customers with current technology, engineering, and the latest designs and features packaged at an affordable price. We have the tire equipment to suit your needs.

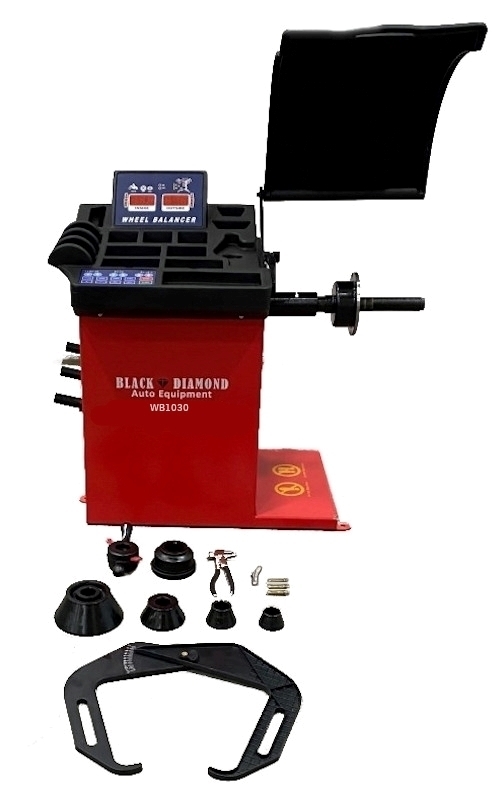

Magnetic levitation system and self-propelled balancing. No Motor, No Belts
Self-calibration and self-diagnoses, see videos and manual

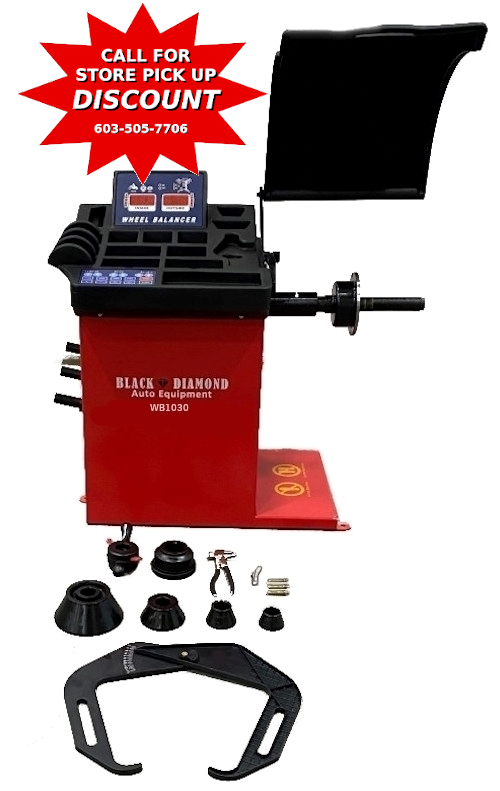

Includes quick nut, wheel hub, and cone set capable of balancing larger pickups such as Ford F350 series
4 Cones sizes:
Cone #1. 1 3/4” - 2 5/8”
Cone #2 2 3/16 - 3 1/8”
Cone #3. 3 1/8” - 4 5/8”
Cone # 4 4 1/2 - 7 1/8”
3D measurement distance, diameter, width
Auto Entry: use measuring arm for distance and diameter, measure width manually
Auto Lock: Stop Key: Lock Wheel for mounting weights, or inspection, or stop in emergency
Auto Position: SPL key, "Smart Position Locator" wheel rotates to 12 o’clock, wheel locks, add required weight, cabinet light illuminates wheel, user-friendly for weight placement.
ALU-S mode: SPL key : wheel rotates to 4 o’clock and locks, add adhesive weights from easy angle, laser projects on wheel to pinpoint weight placement for both inside and outside plane
ALU key: toggle to select corresponding aluminum mode
Split Weights: Hide key: hide weights behind spokes when ALU -S program is activated
Dynamic and Static balancing modes. F key = Fn/Static
Fine key: Balance within 1/4oz. Or 5 grams
C key: Recalculate balance without spinning after distance, diameter, or width has been changed
User Data pre setting: 4 pre sets for wheel data can be stored
512 Angular Sensing Positions, 4x more accurate than your average balancer
Cabinet floor plate, for extra stability
Cabinet light for dim areas
Click link below for more info:
Black Diamond WB1030 Wheel Balancer Manual
Rim Diameter Range: 10-30"
Max Wheel Width: 16.3"
Max Wheel diameter: 42.5"
Distance to Spin Flange: 10"
Max Wheel Weight: 143.3 lbs
Balancing Precision: 1g
Balancing Speed: 150-220 RPM
Balancing Cycle Time: 7-10 seconds
Display: LED and Keypad
Angular Positions: 512
Ounce/Gram Selectable: Yes
Shipping Weight: 264.5 lbs
Packing Size: 38.1" x 30.3" x 45.2"
